APHS

Powerful bending technology at an attractive price level.

APHS

C Frame

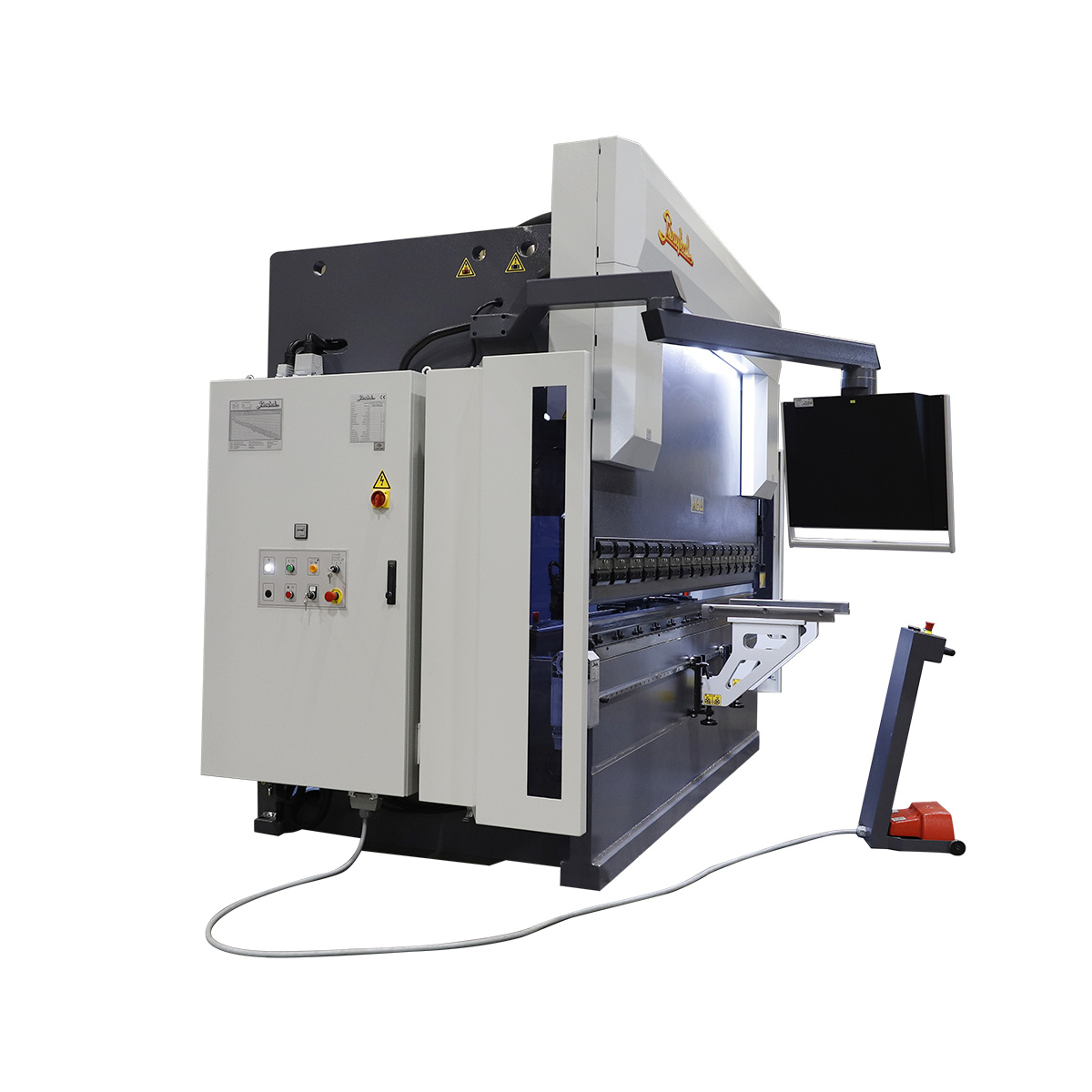

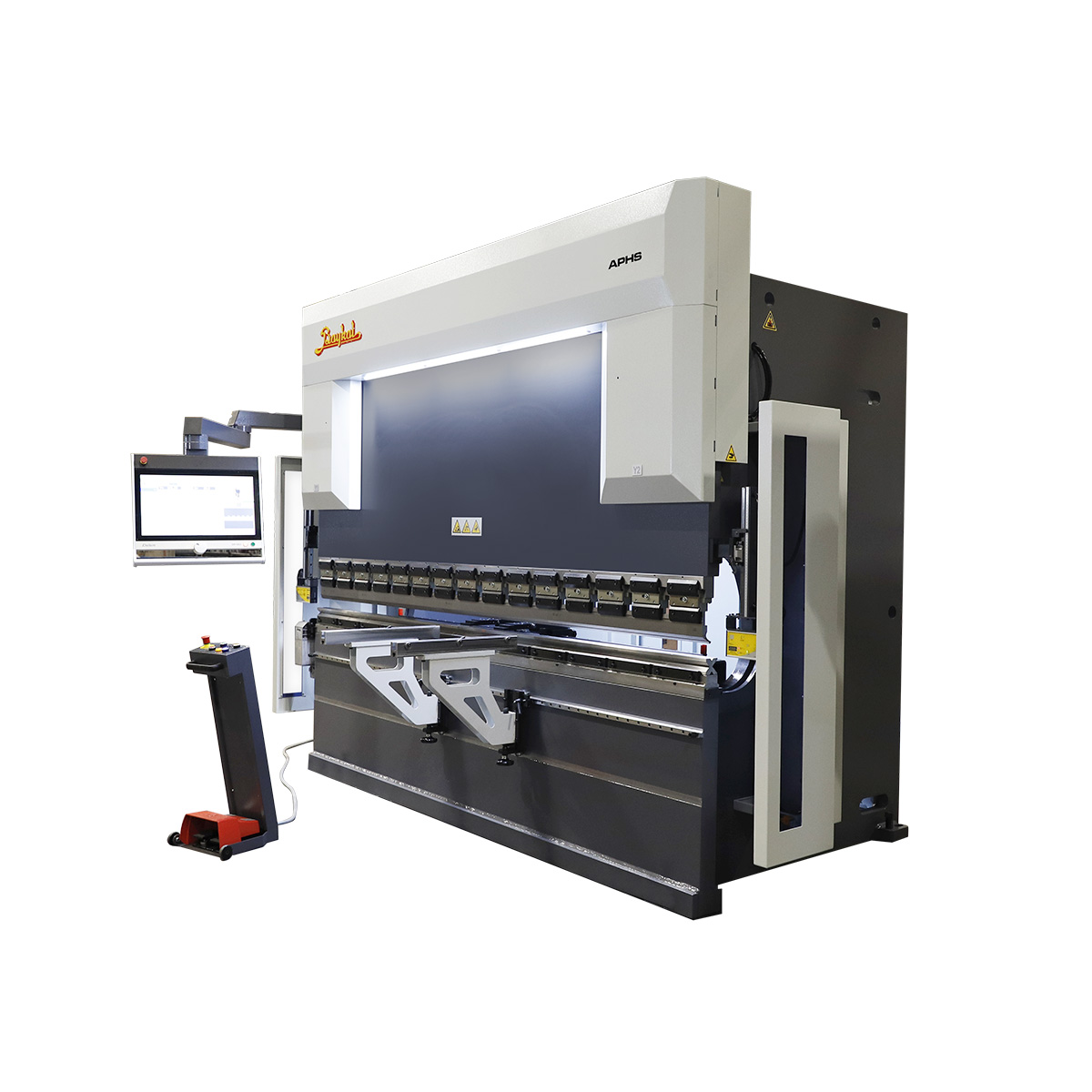

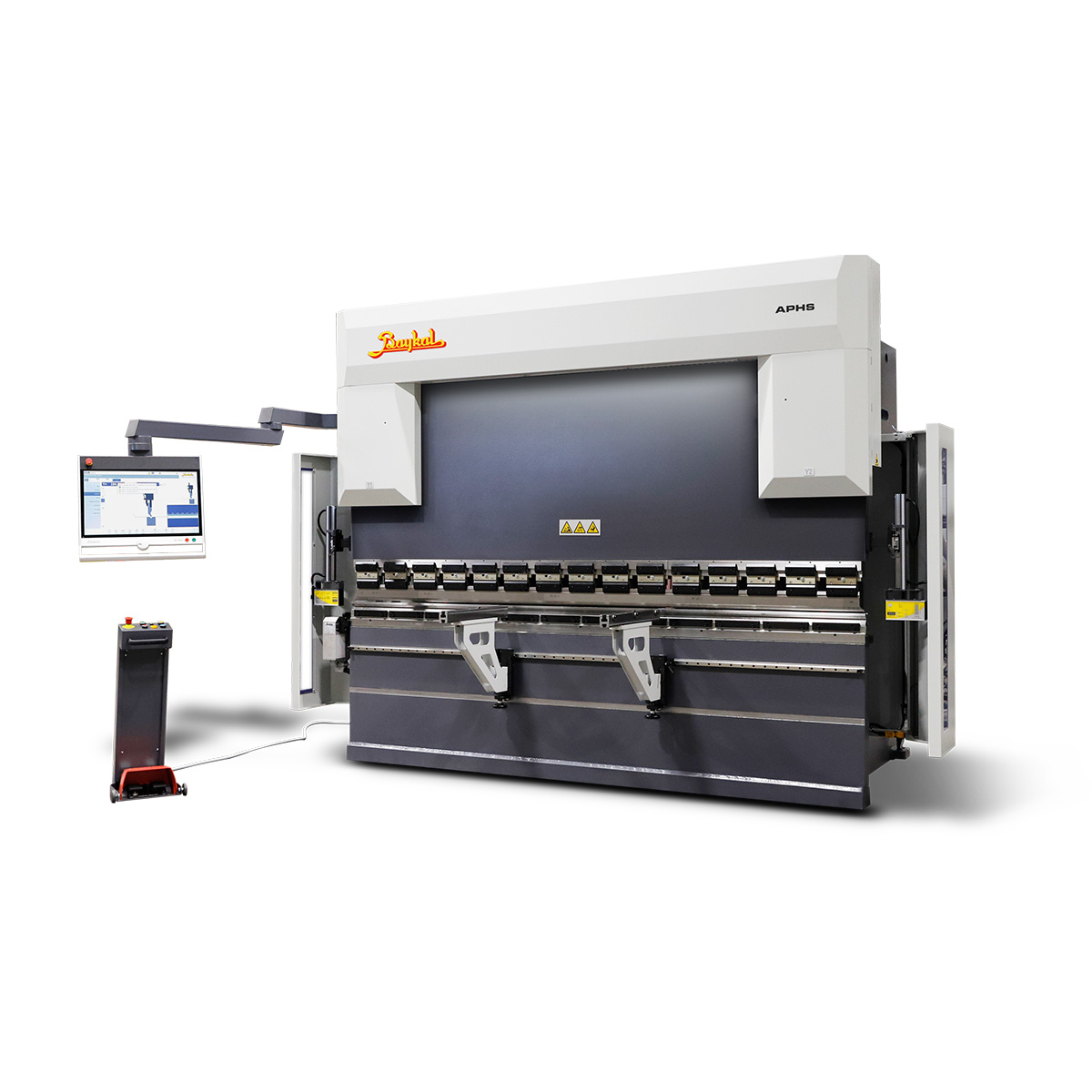

The Baykal APHS Hydraulic Press Brake is a highly efficient C frame press brake designed for precision metal forming and bending applications. Renowned for its robust construction and advanced hydraulic technology, this press brake offers exceptional stability and accuracy, making it ideal for a variety of materials and thicknesses. The C frame design allows for improved accessibility, facilitating easier loading and unloading of workpieces. With its user-friendly controls and customizable features, the Baykal APHS ensures high productivity and flexibility in manufacturing processes. This press brake stands out as a reliable solution for businesses aiming to enhance their operational efficiency while maintaining high-quality output.

Following Arms

Front Arms

Control Units

Optional Backgauges

X+R Backgauges

X Backgauges

Angle Measurement

Laser Bending Line

Laser Guard

Motorized Crowning

Parking Area

Enhanced Accessibility

The C frame design allows for easier handling of larger workpieces, improving workflow and efficiency.

High Accuracy and Consistency

Advanced hydraulic and positioning systems ensure precise bending, reducing material waste and rework.

Increased Productivity

The efficient hydraulic operation and user-friendly controls enable faster setup and execution of bending tasks.

Durable and Reliable

Constructed with high-quality materials, the press brake is designed to withstand rigorous use, ensuring long-term performance.

Lower Maintenance Costs

The robust design minimizes wear and tear, leading to reduced maintenance needs and downtime.

Safety Features

Integrated safety mechanisms help protect operators, creating a safer working environment during operation.

Energy Efficiency

Optimized hydraulic systems reduce energy consumption, lowering operational costs while maintaining high performance.

Flexible Customization

Various configurations and tooling options allow businesses to tailor the press brake to specific needs and applications.

User-Friendly Operation

Intuitive controls simplify operation, making it easier for operators to learn and enhancing overall efficiency.

For more information about Baykal laser cutting advantages, you can check the link

Advantages of Flatbed / 2D Laser Cutting

Download Pdf

APHS TYPES ( C FRAME )	Capacity	Oil Tank Volume	Motor Output	Speeds ( mm/s )			Approx. Weight	Bending Length	Inside Frames	Side Frame Width	Overall Width ( Front View )	Bed Height	Machine Height	Daylight Opening	Stroke	Table Width	Throat Gap	Adapter Height
	Capacity	Oil Tank Volume	Motor Output	Approach	Working	Return	Approx. Weight	Bending Length	Inside Frames	Side Frame Width	Overall Width ( Front View )	Bed Height	Machine Height	Daylight Opening	Stroke	Table Width	Throat Gap	Adapter Height
	kN	lt	kW	Approach	Working	Return	ton	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
APHS 125060	600	80	5,5	150	10	130	5	1250	1070	1855	2310	850	2610	530	260	60	460	80
APHS 21080	800	140	7,5	150	10	130	6,5	2100	1600	1950	2860	880	2595	530	260	60	460	80
APHS 26110	1100	140	11	160	10	130	7,5	2600	2050	1950	3310	880	2905	540	260	60	460	80
APHS 31110	1100	140	11	150	10	130	8,7	3100	2550	1950	3810	880	2905	540	260	60	460	80
APHS 31150	1500	210	15	150	10	130	10	3100	2550	1950	3850	880	2905	540	260	60	460	80
APHS 31190	1900	210	18,5	150	10	130	10,4	3100	2550	1950	3830	880	2895	530	260	90	460	80
APHS 31240	2400	210	22	130	10	120	11,4	3100	2550	1950	3850	880	2895	530	260	90	460	80
APHS 31320	3200	280	30	130	10	120	15,5	3100	2550	2175	3870	1000	3245	660	320	380	500	80
APHS 31440	4400	450	30	80	8	70	22,5	3100	2550	2060	4050	1000	3575	700	320	495	500	125
APHS 41150	1500	210	15	160	10	130	12,5	4100	3550	1950	4830	880	2895	530	260	60	460	80
APHS 41190	1900	210	18,5	160	10	110	12,7	4100	3550	1950	4830	880	2895	530	260	90	460	80
APHS 41240	2400	210	22	150	10	120	14	4100	3550	1950	4850	880	2895	530	260	90	460	80
APHS 41320	3200	280	30	130	10	120	19	4100	3550	2175	4870	1000	3200	635	320	280	500	80
APHS 41440	4400	450	30	90	8	70	27	4100	3550	2390	4830	1000	3350	705	320	380	500	125
APHS 37150	1500	210	15	160	10	130	11	3700	3250	1935	4530	880	2895	530	260	60	460	80
APHS 37190	1900	210	18,5	150	10	110	12	3700	3250	1975	4530	880	2895	530	260	90	460	80
APHS 37240	2400	210	22	140	10	110	12,5	3700	3250	1975	4550	880	2895	530	260	90	460	80
APHS 37320	3200	280	30	130	10	120	16,5	3700	3250	1935	4570	980	3200	635	320	280	500	80
APHS 61240	2400	300	22	140	10	100	25,5	6100	5100	2255	7000	1100	3090	500	260	90	500	80
APHS 61320	3200	300	30	130	10	120	30,5	6100	5100	2550	7000	1185	3705	580	320	200	500	80
APHS 61440	4400	450	30	90	8	70	39,5	6100	5100	2170	7040	1100	3775	630	320	280	500	110
APHS 61600	6000	500	45	80	7	70	56	6100	5100	2375	7040	1050	4240	745	360	380	500	125

* Design and specifications are subject to change without notice
